Inflatable Air Shelters

Our shelters are designed for ease of use and require the minimum number of people to set up due to the unique inflatable frame system, the light weight, simple packing and stowing, and simple operation.

We offer standard sizes from 12 to 52 square meters (approx. 120 to 520 square feet). Custom sizes are available upon request.



Standard models are available with accessories such as inflation systems, inflation pressure monitoring, portable heating and cooling systems, and electric generators.

Applications for Sava shelters are almost unlimited. They are commonly used for:

- protection from the elements
- as decon shelters in case of hazmat accidents
- storage for hazardous materials and protection from the elements
- incident command centre
- storage of various ordinance and protection from the elements
- activities in connection with crime scene investigations
- first aid centre
- mobile hospital
- as a canteen when conducting different types of operations

Several shelters can be connected together to meet special requirements.

Some of the special features of our shelters are:

- shelter set up time is less than 10 minutes
- will remain fully inflated for several days without the need to add pressure
- removable/replaceable ground cover
- removable/replaceable top cover
- removable/replaceable door panels
- ability to connect various types of shelters
- available in several colours
- made of fire resistant materials
- individual decon showers can be added to the shelters
- compatible with Sava decon units
- ability to attach protective net to the ceiling
- custom logo labels available

Please click here to obtain more information via our Inflatable Air Shelter data sheet that is in PDF format

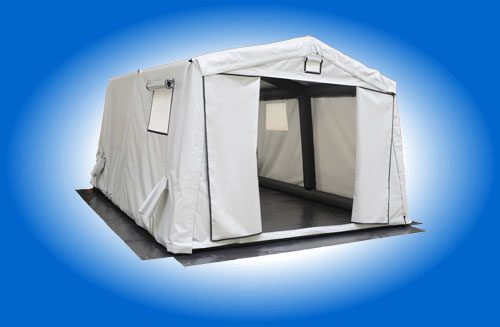

Inflatable Air Shelters Door open Gray







Inflatable Air Shelter Technical Data
  Units of
Capacity

12

16 22 33 42 52
Code   542130 542131 542132 542133 542134 542135
External Dimensions cm 397x392x270

490x392x270

590x392x270 644x570x270 790x570x270
995x570x270
Usable Area cm 350x350x250
446x350x250
546x350x250
600x350x250
750x530x250
950x530x250

Max Inflation

Pressure

m2 0.3 0.3 0.3 0.3 0.3 0.3
Test Pressure BAR 0.65 0.65 0.65 0.65 0.65 0.65

Air Volume

Required

L 1560 1735 1997 2537 3141 3521
Dimensions Folded cm 140 x 85 x 50
140 x 85 x 55
140 x 85 x 60
140 x 85 x 65
140 x 85 x 65
140 x 85 x 90
Inflation Time min 5 5 5 8 10 10
Weight kg 92 103 120 116 175 203

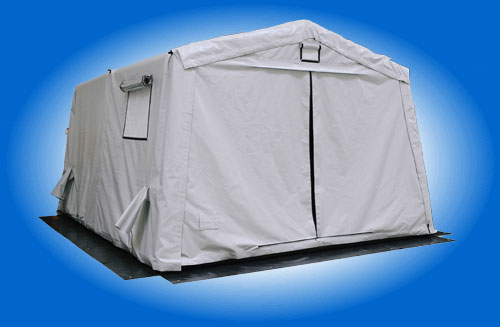

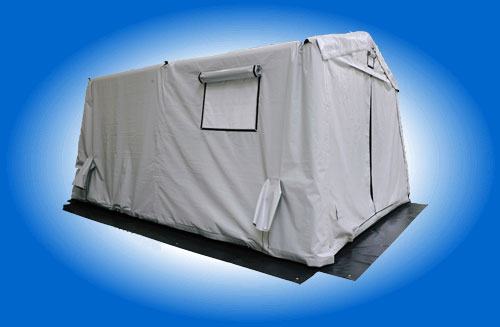

Inflatable Air Shelters Door Closed Gray




Back to top

Electric Generator-542144

To provide for electric power in the field, we have the generator Model BSKA 6.5

Specifications:
- fuel type: gasoline
- fuel tank size: 10.5 l (2.75 gal)
- max. Output 9.8 KW
- voltage 230V/50Hz
- safety class: IP54
- weight: 118 kg (260 lbs)
- dimensions: 70 x 44 x 59 cm (27.5 x 17 x 23 inch)
- 16 Amp receptacle
- running time at ¾ tank – 4.8 hours

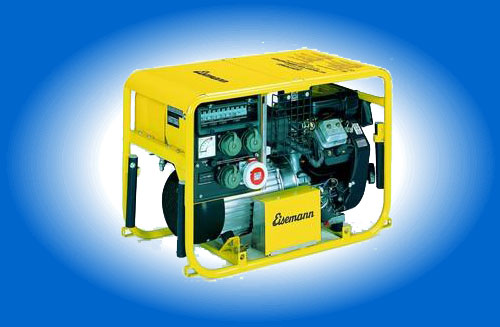

 air shelter electric generator


Back to top

Light kit 2x55W-542138

Suitable lighting for the shelter interior can be achieved by installing light kits which are simply attached to the inflatable framework. The lights are moisture resistant and meet the safety standard IP54.


Specifications:
- Voltage: 230V/50Hz
- Expected life: 2000 h
- Dimensions: 610 x 190 x 145 mm (24 x 7.5 x 5.7 inch)
- Weight: 3.55 kg (7.8 lbs)
- Cable length: 9.6 m (31.5 feet)

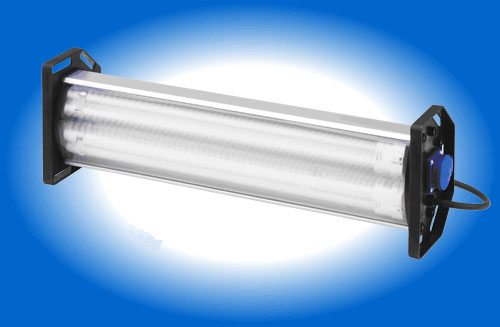

 Air Sheleter Light kit 2x55W-542138


Back to top

Electric Heater D3XS-542150

If electric power is available either through the power grid or portable generator, the shelter interior can be heated by means of electric space heater. The model D3XS is only suitable for Type 12 and 16 shelters.


Specifications:
-wattage: 3 KW
- air volume: 300m3/h
- dimensions: 400 x 340 x 270mm (15.75 x 13.4 x 10.5 inch)
- weight: 5 kg (11 lbs)

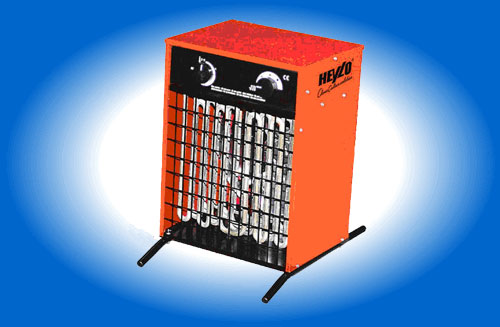

 Air Shelter Electric Heater D3XS-542150


Back to top

Gas Heater DG30S-542152

If electric power is not available, the shelter can be heated using a gas heater Model DG30S.
Specifications:


-heating capacity: 16-29KW
-air volume: 1200m³/h
-dimensions: 550x400x250 mm (22 x 15.75 x 10 inch)
-weight 13,6kg (30 lbs)

 Air Shelter Gas Heater DG30S-542152


Back to top

Oil Heater K25T

A fast and efficient way of heating a shelter can be accomplished with an oil heater Model K25T. It includes a thermostat for precise temperature control.

Specifications:
-heating capacity: 25KW
-air volume capacity: 2050m³/h
-dimensions: 100x58x72 cm (39 x 23 x 28 inch)
-weight: 85kg (187 lbs)
-tank capacity: 35l (9.25 gal)
-oil consumption 2,3kg/h (5 lbs/h)

Additional equipment for K25T
-supply hose 7,6m Ø203mm (25 feet, 8 inch dia.)
-exhaust hose
-thermostat

 Air Shelter Oil Heater K25T


Back to top

Electric inflator with fill hose-542141

Electric inflator allows for quick inflation of the shelter.


Specifications:
-air capacity: 1500l/min
- dimensions: Ø16,5x27cm (dia. 6.5 inch x 10.5 inch high)
-weight 3kg (6.6 lb)
- voltage: 230V/50Hz

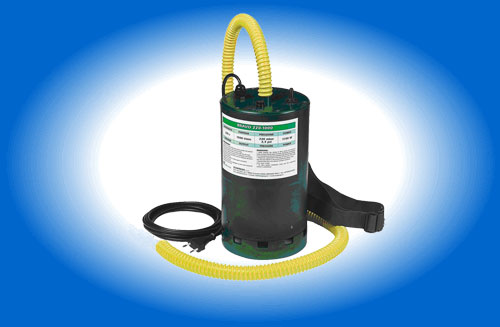

 Air Shelter Electric inflator with fill hose-542141


Back to top

Single fitting controller 0,3 bar (4.35 PSI)

Use this controller to properly monitor the inflation process.


Specifications:
-pressure relief valve: 0,3 bar (4.35 PSI)
- pressure gauge 0,5 bar (7.25 PSI)
-hose length 2m (6.5 feet)

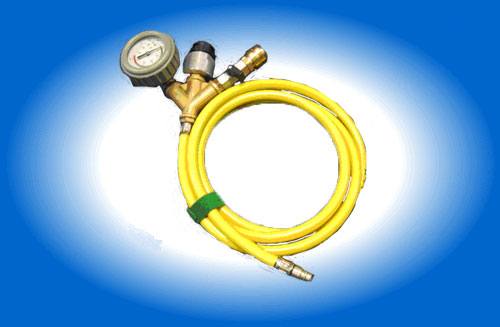

 Air Shelter Single fitting controller 0,3 bar (4.35 PSI)
