Floating Containment Booms

Floating containment booms prevent or limit the spreading of floating debris and water-born
pollutants such as oil, solid waste, algae, sea- weed, etc.

They protect harbors, refineries, oil terminals, tourist beaches, and biologically sensitive areas. They can be used to re-direct floating debris and spills from strong current areas to areas where these materials can be more easily recovered.



 Floating Containment Booms

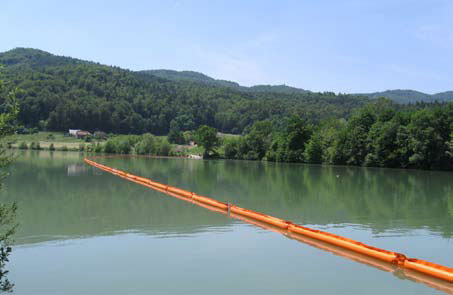

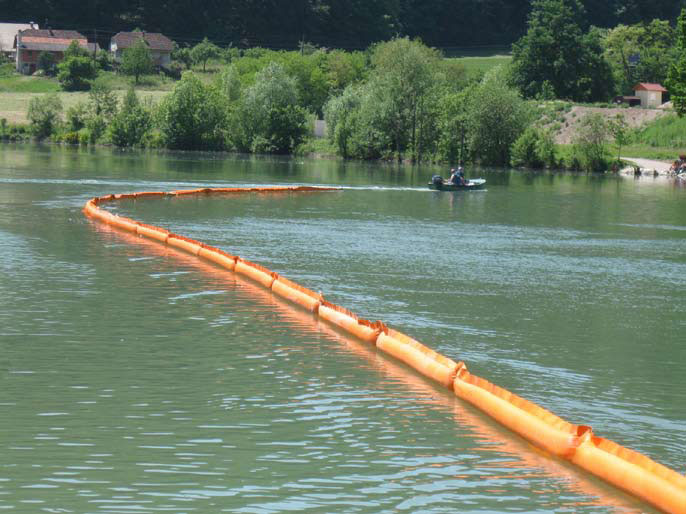

 Floating Containmnet Boom Install 1   Floating Containmnet Boom Install 2


Back to top

S. Tech Booms T

* Suitable for open waters, rivers and streams, harbors,
canals, etc

* Highly stable

* Small volume when packed for transport


* Simple and quick deployment


* UV and oil resistant material


* Long life span due to high wear resistance


S. Tech Booms

Sava floating containment booms are the result of many years of designing and manufacturing of all types of rubber products. They are
made of special, reinforced neoprene fabric that is hot-vulcanized under pressure for superior strength and reliability.


The booms are easy to handle. Only two people are required to un-fold 200 meters of boom in approximately 10 minutes.


The properly proportioned draft part of the boom with the ballast at the bottom of the skirt ensures that the loss of contained liquid is kept to a minimum.

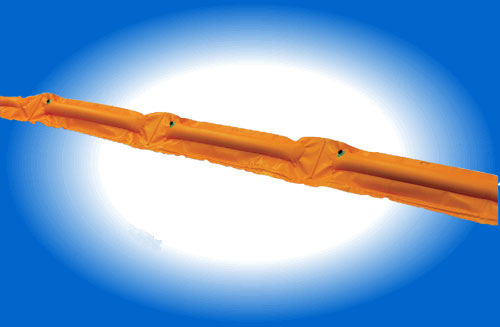

The freeboard part of the boom consists of air inflated chambers which provide for excellent wave following characteristics.
Cleaning of the booms is easy and simple by using common detergents and high pressure washers.


These booms take little storage space because the air chambers completely deflate.

S. Tech Booms T
Type
Module Length
Height
Surface Section
Below Water Section
Weight
Buoyancy Ratio
mm
mm
mm
kg/m
S. Tech Booms T440
as requested
440
160
220
2.67
8:1
S. Tech Booms T660
as requested
660
200
330
3.8
8:1
S. Tech Booms T990
as requested
990
300
510
5.2
8:1
S. Tech Booms T1250
as requested
1250
300
770
6.15
13:1
S. Tech Booms T1500
as requested
1500
400
850
8
15:1
S. Tech Booms T1800
as requested
1800
500
1000
9
15:1


Back to top

S. Tech Booms SGB

* Suitable for sea, rivers and streams, harbors, canals, etc.

* Highly stable


* Simple and quick deployment


* UV and oil resistant material


* Long life span due to high wear resistance


S. Tech Booms T

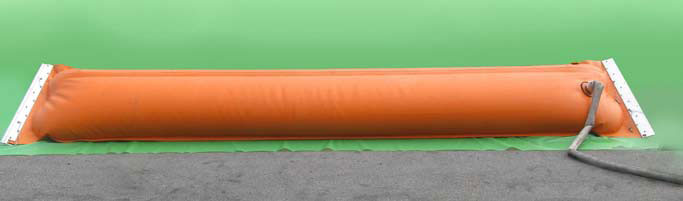

One of Sava’s new offerings in the containment boom range of products is the Shore Protection Boom.

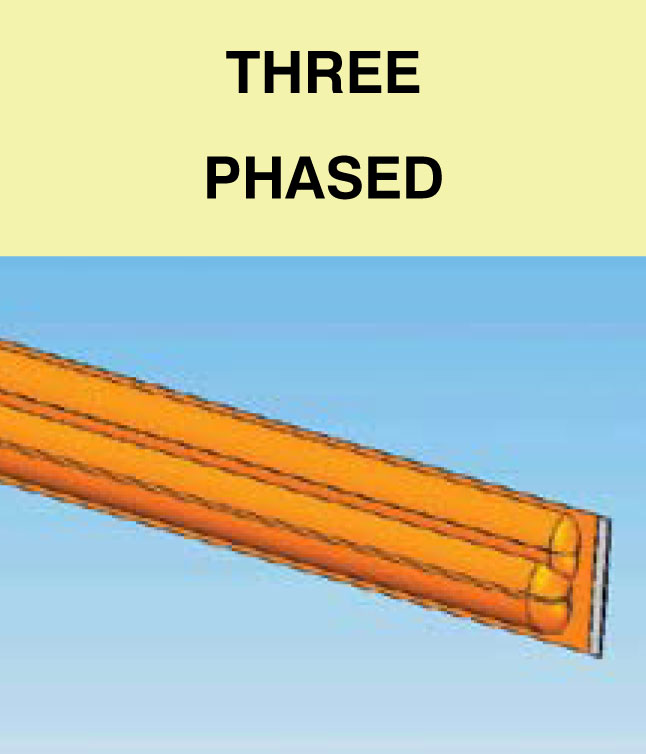

This boom features a triple chamber design. The two bottom chambers are filled with water and the top chamber filled with air. It exhibits excellent floating characteristics due to calculated ratio between buoyancy and the force of gravity. As the boom settles on the ground, the vertically perforated inner membrane acts as a stabilizing element that keeps the boom from tipping over. It is for this reason that the Shore Protection Boom has excellent stability and sealing characteristics. It is equally effective on sandy, rocky or shell beaches.


Due to its high flexibility, the SGB booms are very effective in protecting coastal areas during low and high tides. They are ideal for spill containment in shallow waters such as rivers and marshes. They can act as dams to facilitate clean up operations by raising the water level, as well as dykes to contain industrial spills.


By maintaining straight line, the SGB booms enable the water to whirl thus preventing the spreading of oil spill under the surface.


Due to the low inflation pressure, the booms are very flexible.


Cleaning of the booms is easy by using common detergents and high pressure washers.

S. Tech Booms SGB
Type
Module Length
Height
Surface Section
Below Water Section
Weight
Buoyancy Ratio
mm
mm
mm
kg/m
S. Tech Booms SGB 1000
as requested
1000
220
335
5.7
10:1


Back to top

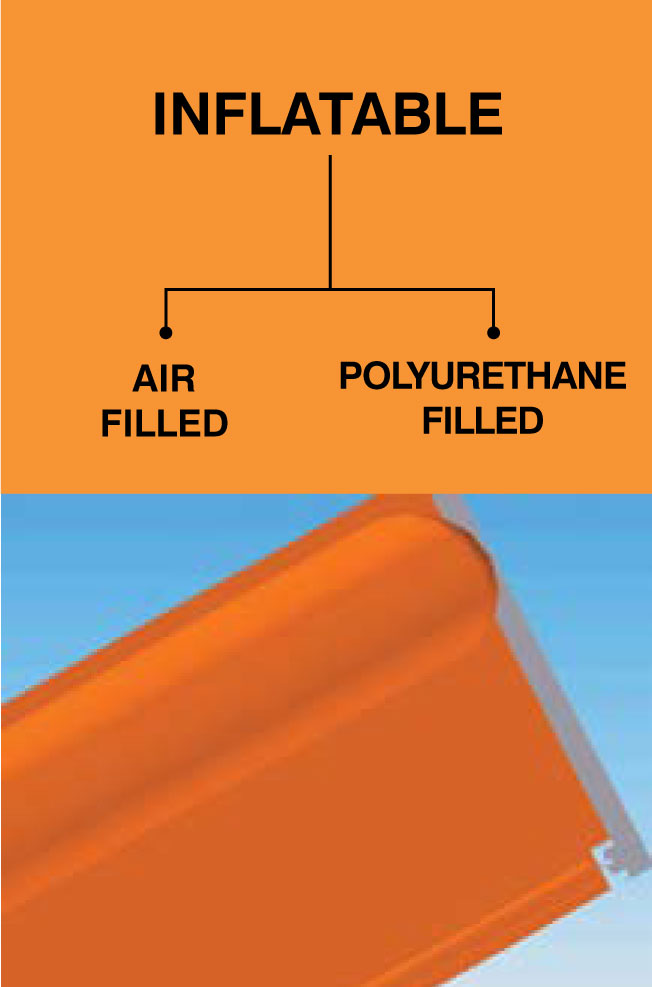

Inflatable containment floating specifications

EP (polyester-polyamide) fabric, coated with NBR inside and CR/CSM outside, guarantees excellent resistance against UV rays and other harshweather conditions.




Specification/Type
T440
T630
T990
T1250
T1500
T1800
Total height deflated/inflated
440/380 mm
630/530 mm
990/810 mm
1250/1070 mm
1500/1250 mm
1800/1500 mm
Boom height above water
160 mm
200 mm
300 mm
300 mm
400 mm
500 mm
Boom height below water
220 mm
330 mm
510 mm
770 mm
850 mm
1000 mm
Inflated tubus diameter
140 mm
200 mm
320 mm
320 mm
400 mm
500 mm
Buoyacy ratio
8:1
8:1
8:1
13:1
15:1
15:1
Floating elements
seamless air chambers, cylindrical shape
No. of air chambersper 10m
2
2
2
2
2
2
Total weight
2.67 kg/m
3.8 kg/m
5.2 kg/m
6.15 kg/m
8 kg/m
9 kg/m
Coating fabric thickness (two layers)
1.6 mm
1.6 mm
1.6 mm
1.6 mm
1.6 mm
1.6 mm
Containment boom thickness
3.2 mm
3.2 mm
3.2 mm
3.2 mm
3.2 mm
3.2 mm
Ballast/weight
galvanised steel chain
Fabric coating
EP (polyester - polyamide) fabric, coated with CR/CSM
Ozone resistance
no cracks
UV resistance
< 5
< 5
< 5
< 5
< 5
< 5
Inflating pressure
Max. 0.2 bar / 2.9 PSI
Filling adapter
monsun valve

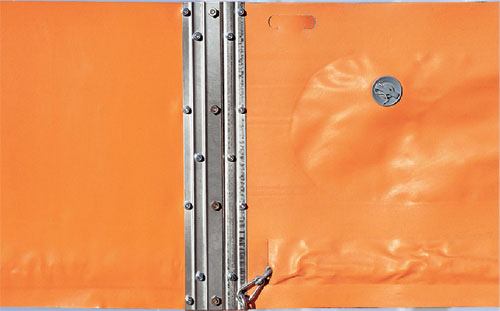

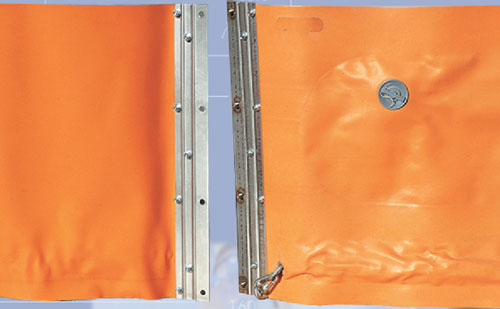

Linking elements
ASTM - aluminimum
Colour
orange (high visibility)
Anchorage points
each section
Lifespan
Approximatley 15 years with proper care and storage
Maintenance
Detergents, with high pressure cleaner

Rubber fabric
Tensile strength - warp
7000 N/50mm; ISO 9073-3
Tensile strength - weft
2900 N/50mm; ISO 9073-3
Shearing strength - warp

≥225 N; ISO 4674 (met. A)

Shearing strength - weft
≥225 N; ISO 4674 (met. A)
Total tensile strength
61600 N
88200 N
138600 N
175000 N
210000 N
252000 N

Boom
Tensile strength - warp
14000 N/50mm; ISO 9073-3
Tensile strength - weft
5800 N/50mm; ISO 9073-3
Shearing strength - warp
≥450 N; ISO 4674 (met. A)
Shearing strength - weft
≥500 N; ISO 4674 (met. A)
Total tensile strength
123200 N
176400 N
227200 N
350000 N
420000 N
504000 N
Elongation at break
17%
Shearing fabric resistance
270 N/mm
