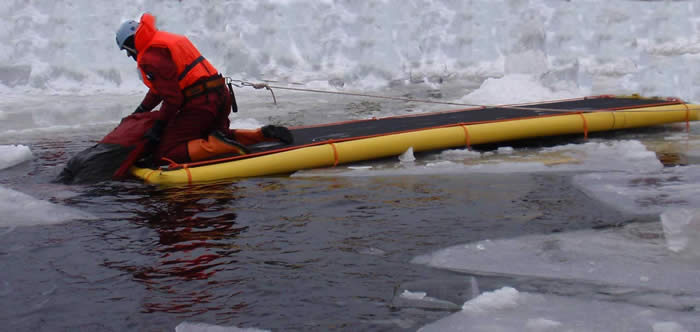

Rescue Walkway

Our inflatable Rescue Walkway is in the shape of a catamaran and has been developed to offer rescue teams a safe, stable
work platform on water, wetlands or ice.

The improved design assures a superb stability under all circumstances and can be used either as a raft or a
work platform. The airtrack is easily and rapidly unrolled, inflated or emptied.

When packed the track can easily be stored and transported. The airtracks are available in two lengths 5m and 10m.

Other lengths upon request.

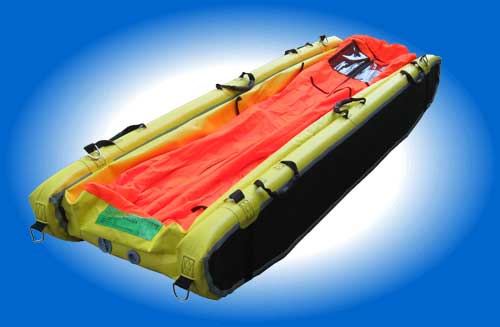

Inflatable Stretcher

Our inflatable stretcher is designed for use in all conditions and provides total safety and protection of the wounded during a rescue action on shore, in the water or air.

The compact design enables simple loading in a vehicle, a boat, a helicopter or a plane. The stretcher is made from an airtight impregnated nylon fabric of high wear resistance.

It is equipped with an inlet valve, safety valve, inflatable mattress, waterproof and zipper cover, rapid deployable tie-down straps, foot loops, adjustable head and neck support, lateral handles, lifting rings for the helicopter, pulling handles and a repair kit.

The stretcher is inflated with a hand pump and ready for use in only three minutes

Decontamination Unit

A decontamination unit is intended for a fast decontamination of protective clothing, which was exposed to radiological and chemical contamination.

The unit is made from an inflatable framework coated with a protective transparent foil. The light and compact structure is easy to transport and is rapid and simple to deploy when needed. The unit is equipped with a hose for attaching a corresponding hand shower.

Owing to the ingenious construction method the contaminated water is retained in the shower. Additional safety is provided by an incorporated containment exit, which holds potentially decontaminated waste water for safe, environmentally friendly disposal when finished. Other types of decontamination units are manufactured upon request.

Inflatable Air Shelters

Our shelters are designed for ease of use and require the minimum number of people to set up due to the unique inflatable frame system, the light weight, simple packing and stowing, and simple operation.

We offer standard sizes from 12 to 52 square meters (approx. 120 to 520 square feet). Custom sizes are available upon request.

Standard models are available with accessories such as inflation systems, inflation pressure monitoring, portable heating and cooling systems, and electric generators.

Applications for Sava shelters are almost unlimited. They are commonly used for:

- protection from the elements
- as decon shelters in case of hazmat accidents
- storage for hazardous materials and protection from the elements
- incident command centre
- storage of various ordinance and protection from the elements
- activities in connection with crime scene investigations
- first aid centre
- mobile hospital
- as a canteen when conducting different types of operations

Several shelters can be connected together to meet special requirements.

Some of the special features of our shelters are:

- shelter set up time is less than 10 minutes
- will remain fully inflated for several days without the need to add pressure
- removable/replaceable ground cover
- removable/replaceable top cover
- removable/replaceable door panels
- ability to connect various types of shelters
- available in several colours
- made of fire resistant materials
- individual decon showers can be added to the shelters
- compatible with Sava decon units
- ability to attach protective net to the ceiling
- custom logo labels available

Please click here to obtain more information via our Inflatable Air Shelter data sheet that is in PDF format

Air Shelter Accessories

Electric Generator-542144

To provide for electric power in the field, we have the generator Model BSKA 6.5

Specifications:
- fuel type: gasoline
- fuel tank size: 10.5 l (2.75 gal)
- max. Output 9.8 KW
- voltage 230V/50Hz
- safety class: IP54
- weight: 118 kg (260 lbs)
- dimensions: 70 x 44 x 59 cm (27.5 x 17 x 23 inch)
- 16 Amp receptacle
- running time at ¾ tank – 4.8 hours

Light kit 2x55W-542138

Suitable lighting for the shelter interior can be achieved by installing light kits which are simply attached to the inflatable framework. The lights are moisture resistant and meet the safety standard IP54.

Specifications:
- Voltage: 230V/50Hz
- Expected life: 2000 h
- Dimensions: 610 x 190 x 145 mm (24 x 7.5 x 5.7 inch)
- Weight: 3.55 kg (7.8 lbs)
- Cable length: 9.6 m (31.5 feet)

Electric Heater D3XS-542150

If electric power is available either through the power grid or portable generator, the shelter interior can be heated by means of electric space heater. The model D3XS is only suitable for Type 12 and 16 shelters.

Specifications:
-wattage: 3 KW
- air volume: 300m3/h
- dimensions: 400 x 340 x 270mm (15.75 x 13.4 x 10.5 inch)
- weight: 5 kg (11 lbs)

Gas Heater DG30S-542152

If electric power is not available, the shelter can be heated using a gas heater Model DG30S.
Specifications:

-heating capacity: 16-29KW
-air volume: 1200m³/h
-dimensions: 550x400x250 mm (22 x 15.75 x 10 inch)
-weight 13,6kg (30 lbs)

Oil Heater K25T

A fast and efficient way of heating a shelter can be accomplished with an oil heater Model K25T. It includes a thermostat for precise temperature control.

Specifications:
-heating capacity: 25KW
-air volume capacity: 2050m³/h
-dimensions: 100x58x72 cm (39 x 23 x 28 inch)
-weight: 85kg (187 lbs)
-tank capacity: 35l (9.25 gal)
-oil consumption 2,3kg/h (5 lbs/h)

Additional equipment for K25T
-supply hose 7,6m Ø203mm (25 feet, 8 inch dia.)
-exhaust hose
-thermostat

Electric inflator with fill hose-542141

Electric inflator allows for quick inflation of the shelter.

Specifications:
-air capacity: 1500l/min
- dimensions: Ø16,5x27cm (dia. 6.5 inch x 10.5 inch high)
-weight 3kg (6.6 lb)
- voltage: 230V/50Hz

Single fitting controller 0,3 bar (4.35 PSI)

Use this controller to properly monitor the inflation process.

Specifications:
-pressure relief valve: 0,3 bar (4.35 PSI)
- pressure gauge 0,5 bar (7.25 PSI)
-hose length 2m (6.5 feet)
